用途说明：仪表适宜在有爆炸危险的场所内用来测量非结晶、非凝固的爆炸性混合物或各种无爆炸性的介质压力。仪表经与具有相应防爆性能或采取相应安全措施的电气器件（如继电器及接触器等）配套使用，便能对被控系统实现自动控制和发信（报警）的目的。

USE: Anti-explosion electric-contact pressure gauges are used for measuring pressure of explosive media which are not solidifying and crystal, and no explosive media. With the support of electric equipments such as relays and contacts, the gauges could achieve aims of auto-control and alarm.

主要技术指标：（Technology Data：）

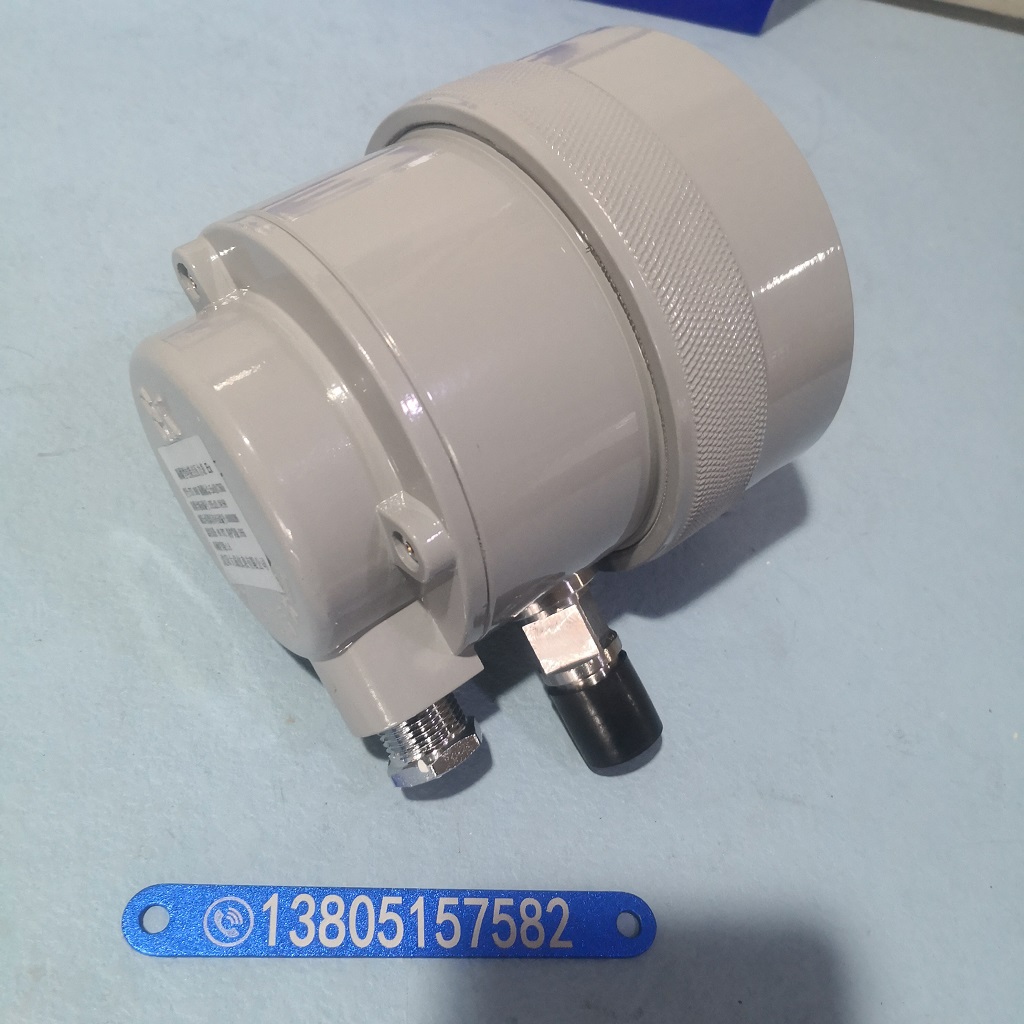

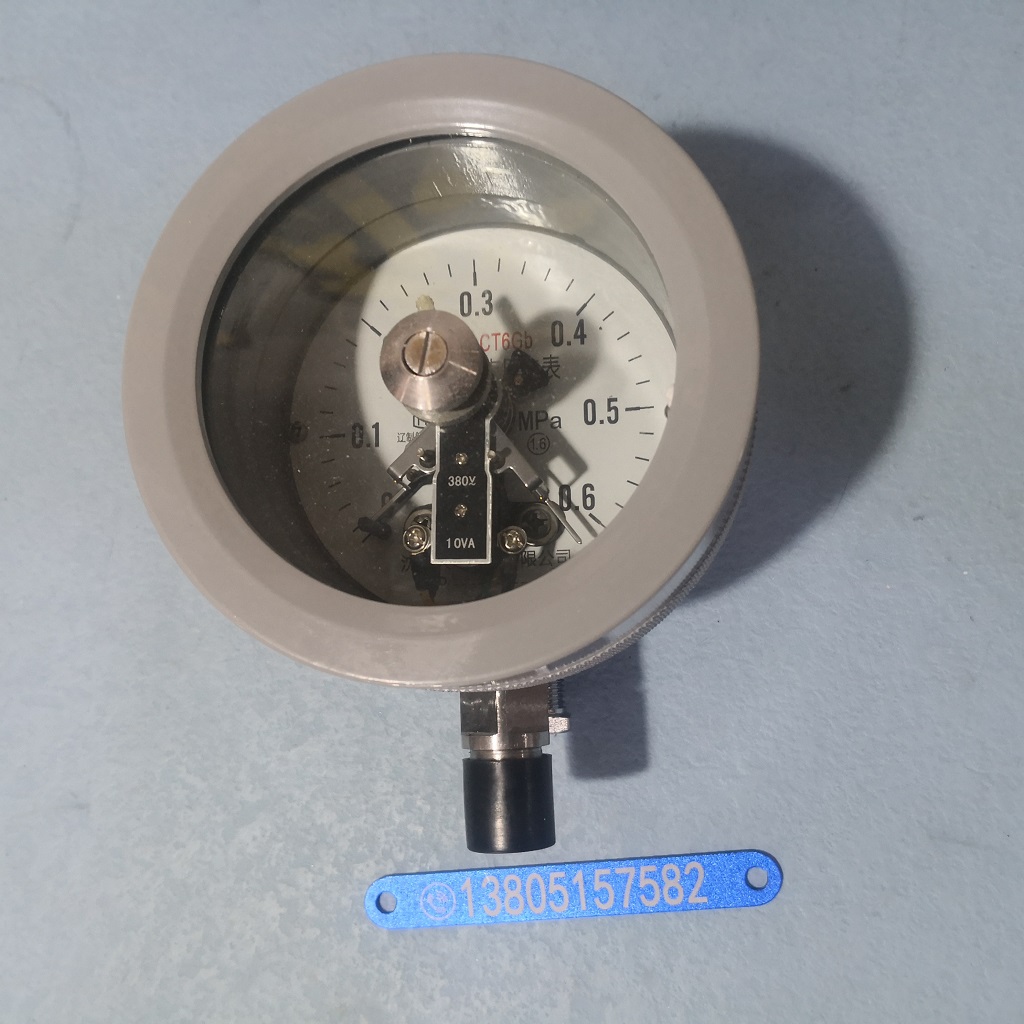

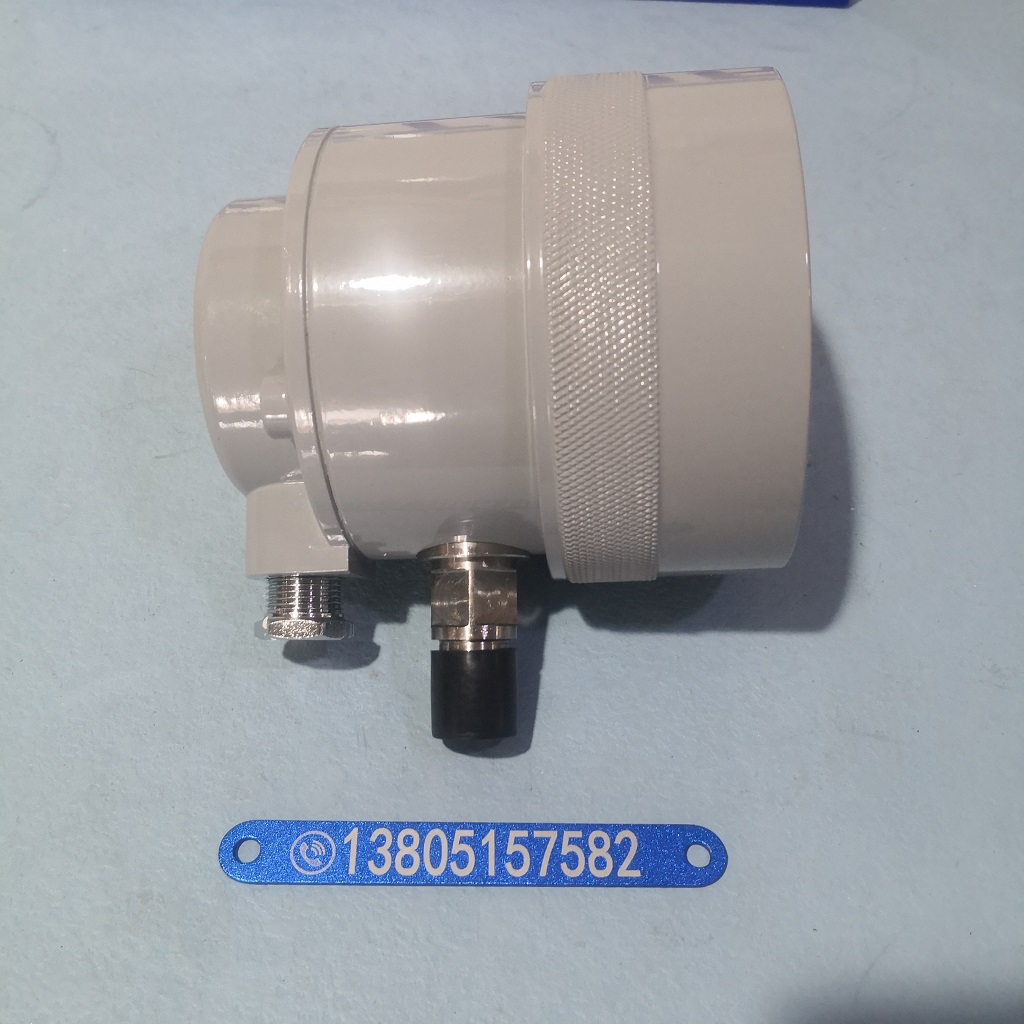

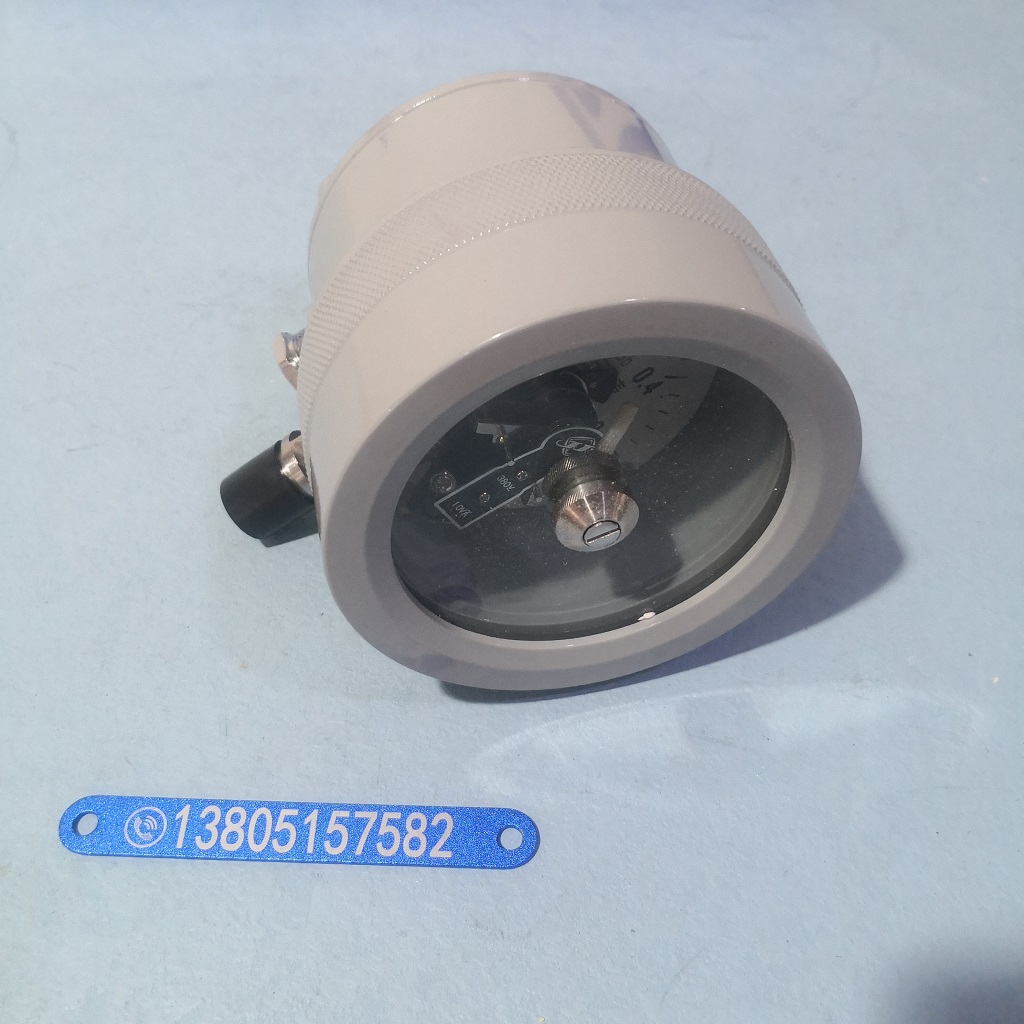

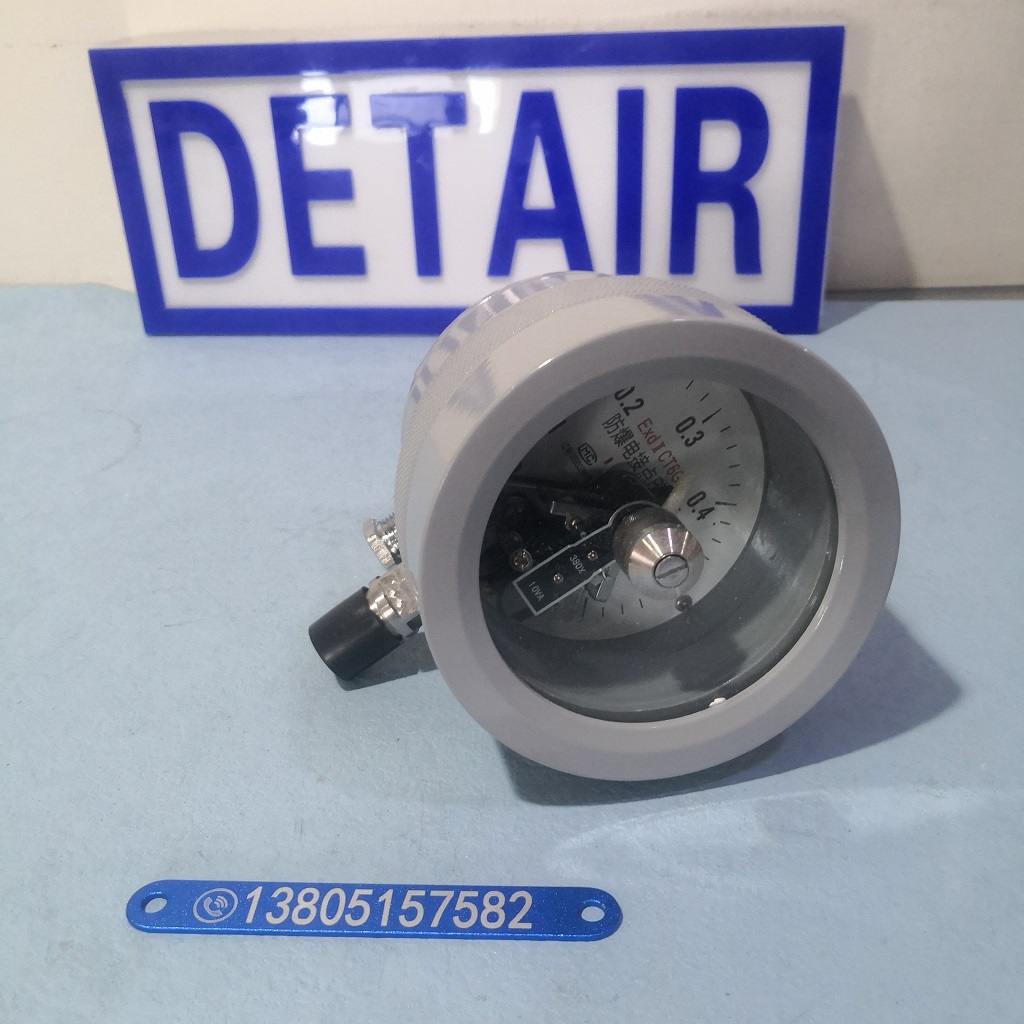

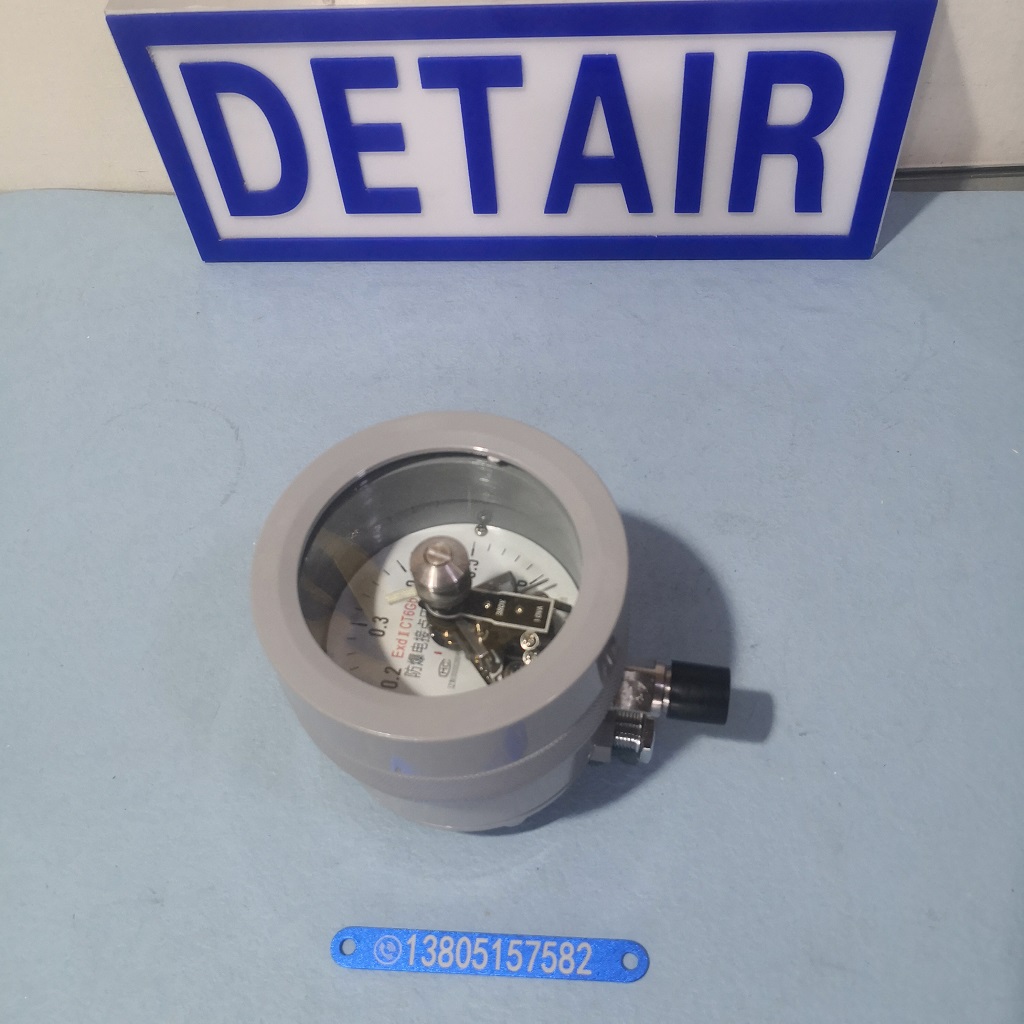

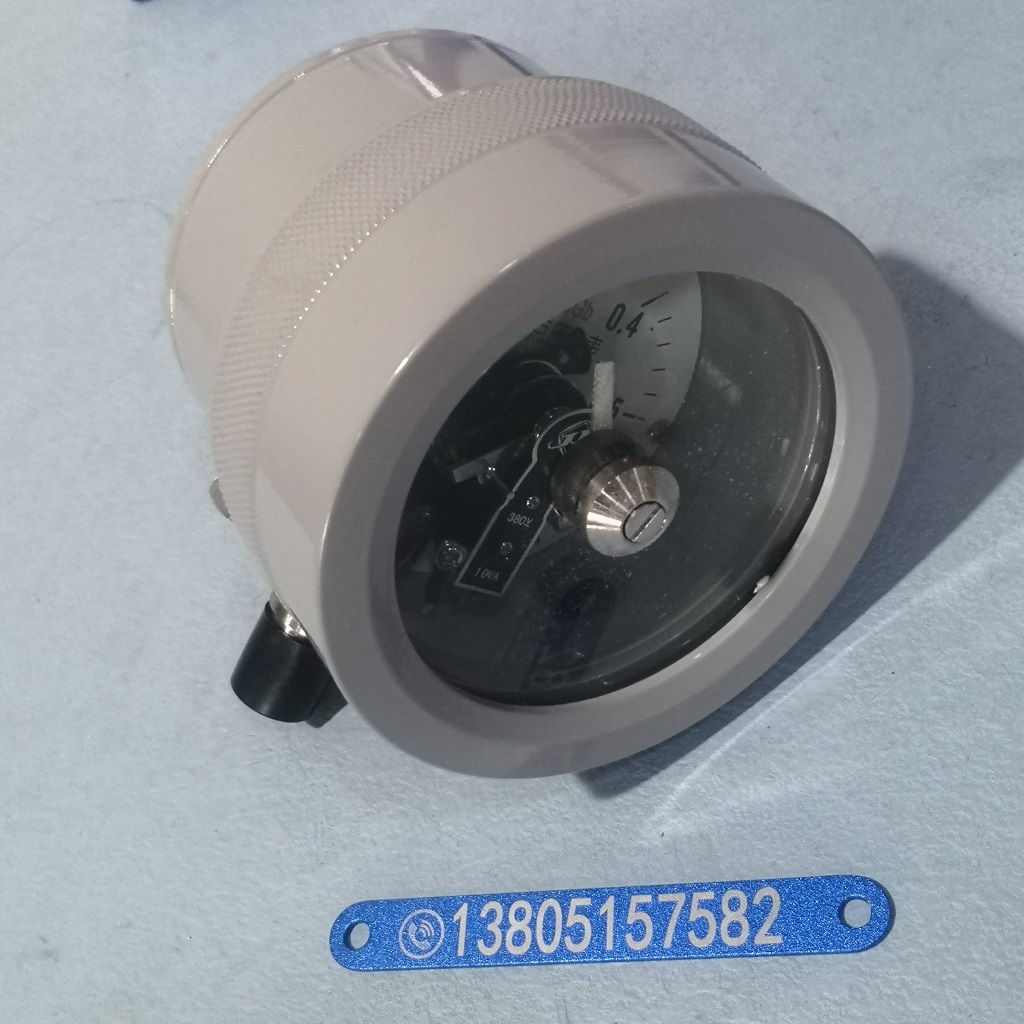

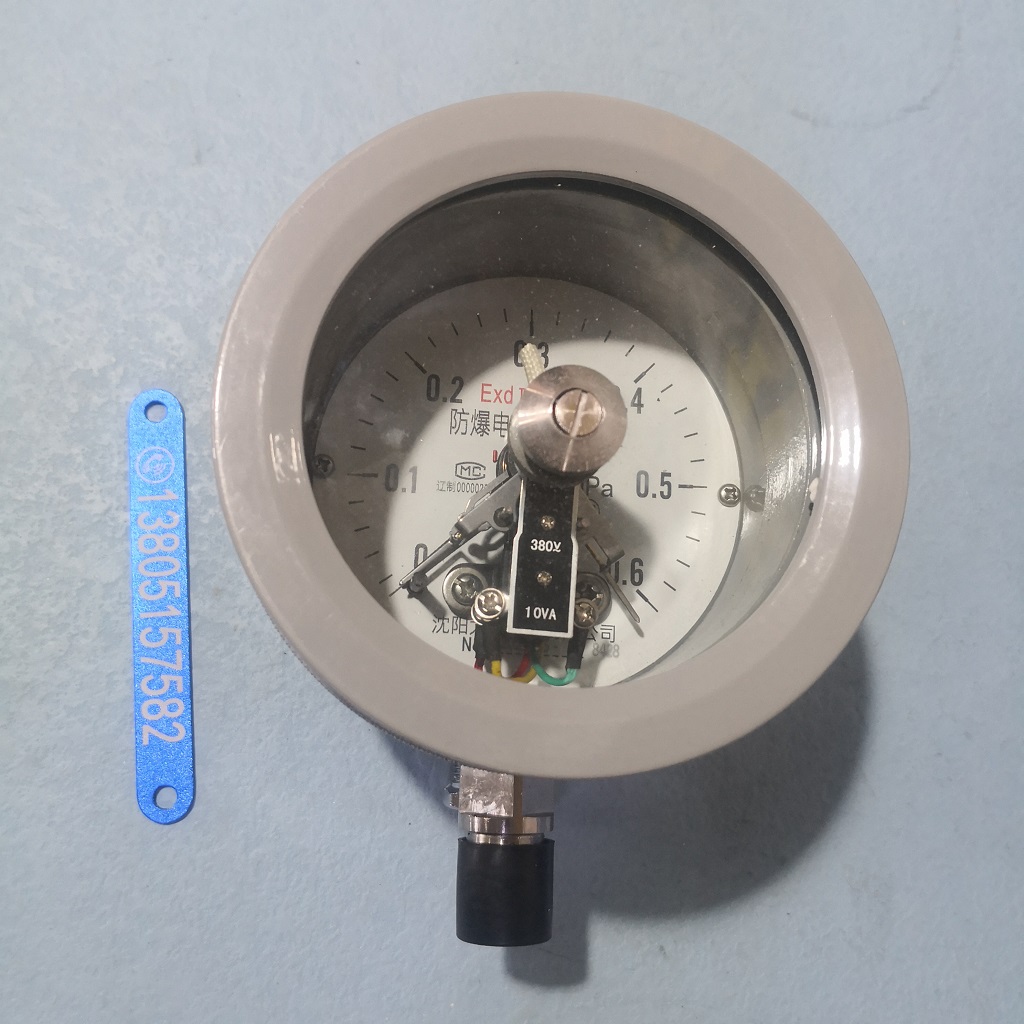

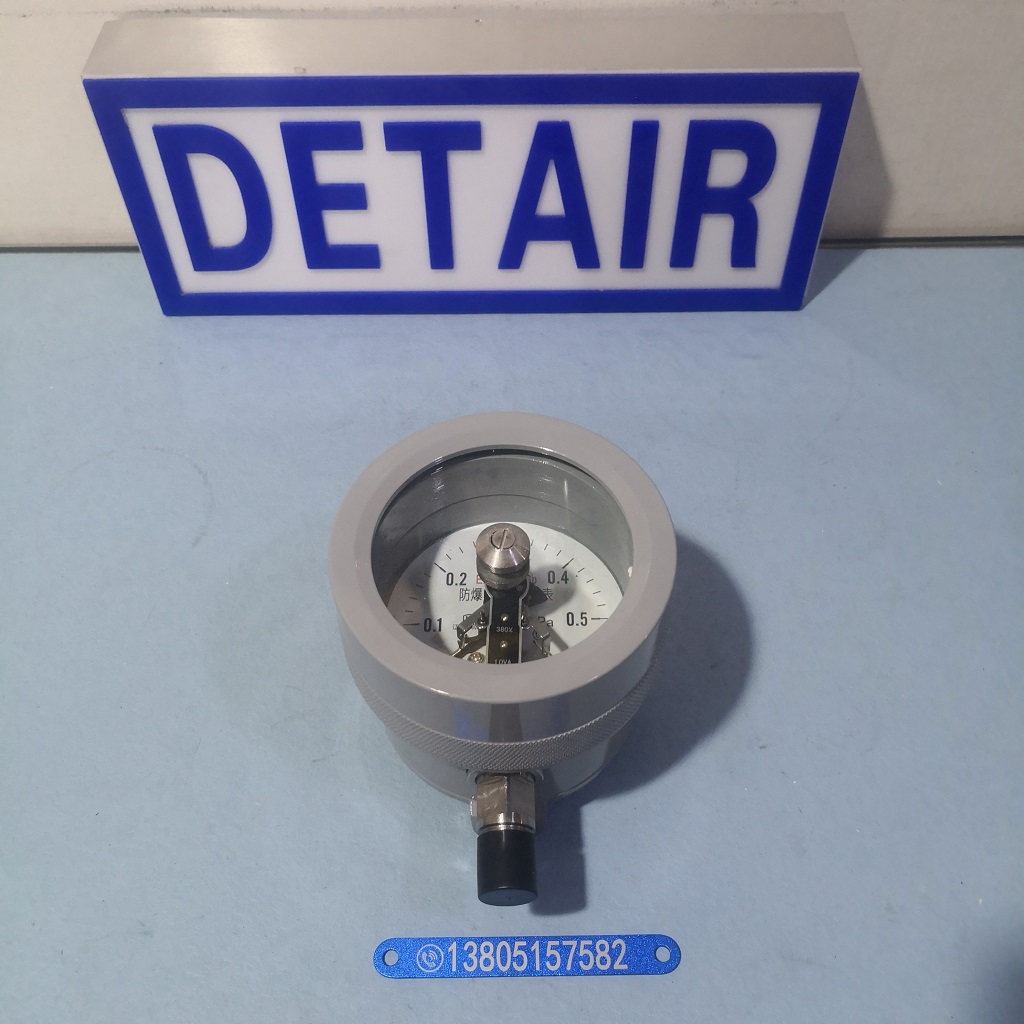

产品名称Product Type	防爆电接点压力表 Anti-explosion Electric-contact Pressure Gauges
产品型号 Model	YX-100B
公称直径（mm）Diameter(mm)	Φ100
精度等级Precision	1.6
测量范围（MPa）Measuring Range (MPa)	0～0.1～60 -0.1～0～2.4
连接螺纹 Thread	M20×1.5
触头功率（VA）Contact Power(VA)	30
.高工作电压（V）Max. Voltage	DC220V or AC380V
绝缘强度Dielectric Strength	50Hz正弦交流电2000V历时一分钟 50Hz 2000V /min.
控制方式 Setup Mode	上、下限缓行接点开关 Switch
防爆标志Explosion Prevention	B3C
仪表重量（Kg）Weight (kg)	6
备注：如果对仪表连接螺纹或其它方面有特殊要求时，请与公司协商订做。 Remarks: Please contact with us directly if you have any special request.
